Safir is one of our most popular sliding wardrobe door models with frames made by stable, rounded aluminum profiles. Functional advantages and many choices in the visual presentation makes the model adaptable and well suited for most room interiors - from laundry rooms to the urban family room. The sliding doors are available in various configurations, single panels, 3 and 4 panels, and top/bottom panels with a single large center panel. The panels are separated by dividers in the selected finish.
Customization
All doors are custom made to the same width with equal overlap between each. The Safir overlap is 30 mm.
Panels
The panels are available with 10 mm veneered, painted, touchwood, and melamine covered finishes, or with 4 mm glass/mirror.
Frames
Premium aluminum profiles in 3 different finishes: White, Natural, and Black.
Floor based sliding doors
The Safir model's doors are floor standing on top of ball bearing wheels with anti jump system. The door height can be adjusted +/- 10 mm.
Minimum/maximum product dimensions (measurements i mm per door)
Min. width | 485 mm | Max. width | 1246 mm |
Min. height, single panel doors | 640 mm | Max. height, single panel doors | 2526 mm |
Min. height, multi panel doors | 640 mm | Max. height multi panel doors | 3000 mm |
Top and bottom tracks
Double and triple rail aluminum tracks. Available in White, Natural or Black finish.
Bottom track | Double rails | Depth: 52 mm | Height: 12,5 mm |
Triple rails | Depth: 91 mm | Height: 12,5 mm | |
Top track | Double rails | Depth: 76 mm | Height: 40,5 mm |
Triple rails | Depth: 112 mm | Height: 40,5 mm |

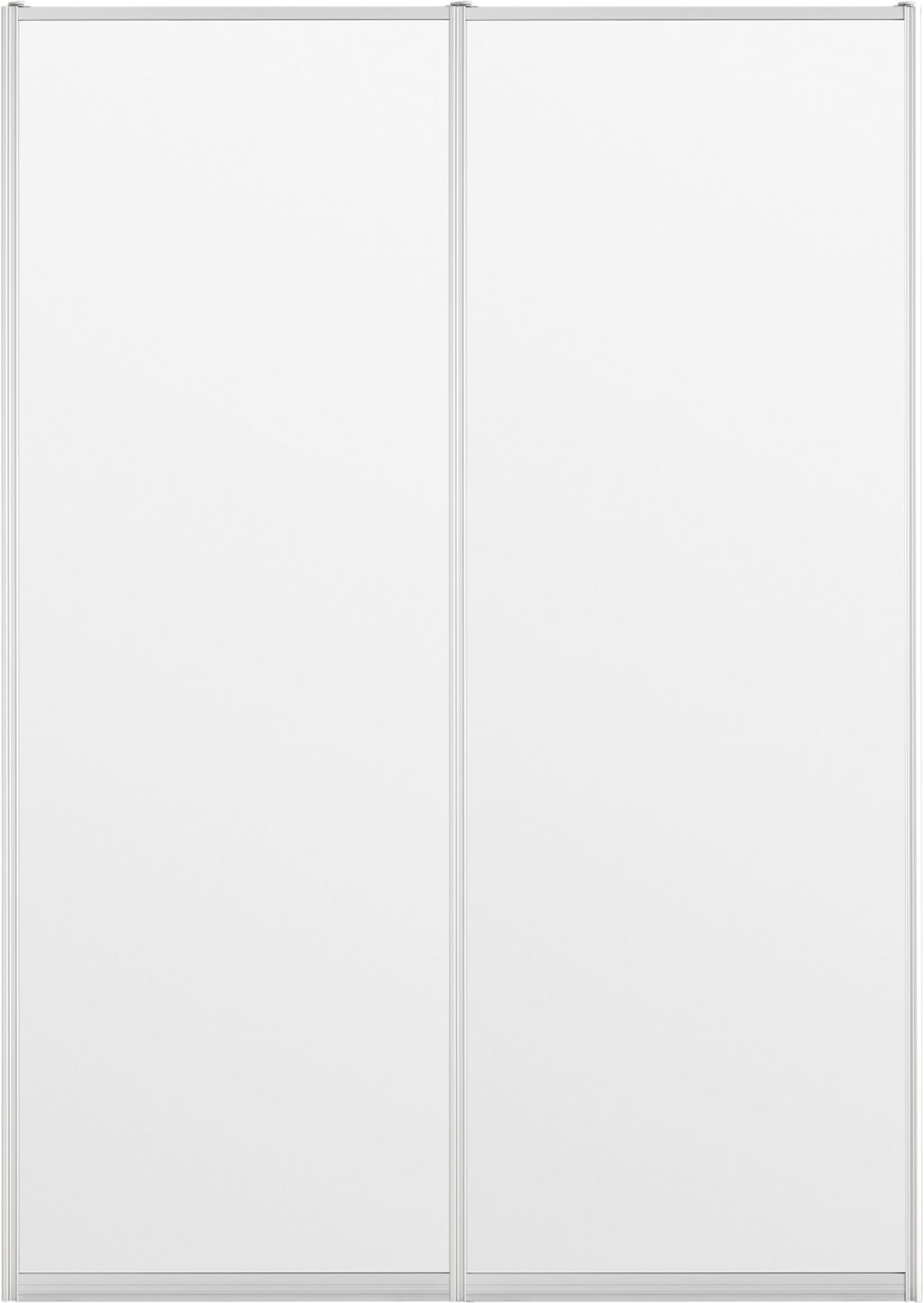

Door widths: | 853 mm + 853 mm |
Door height: | 2314 mm |
Door thickness: | 25 mm |
Overlap door-to-door: | 31 mm |
Top and bottom tracks: | 2-rail, natural aluminum |
Track depth: | 75 mm |
Controlled door closing (soft close): | No |
Weight per door: | 21,7 kg |
Installation Instructions - Instructions for installing sliding doors can be found here.
You can open, download and print a PDF version by clicking on the icon below:
